The ALN OATF Optional vena cava filter with and without hook

Since the creation of the original filter in 1991, the exclusive medical device, we have, as a result of constant concern for adaptability and attentive listening to changes in market needs - designed innovative variations. Our vena cava filters as well as our removal and/or repositioning kits were victorious since then as true references to our customers - including public health establishments as well as private ones all over the world, for their reliability and efficiency. Positioning themselves as technical solutions of high quality in the prevention of a pulmonary embolism

After the manufacturing and the distribution of the first optional ALN vena cava filter in 2001, and in 2013, those years of the optional ALN vena cava filter with hook - permanent or temporary - our last innovation concerned is the optional ALN OATF vena cava filter with or without hook device. A new alternative to the segment of vena cava filters who aim to prevent a pulmonary embolism.



The ALN OATF Optional vena cava filter with and without hook

The optional OATF vena cava filter with or without hook, a 2021 innovation by ALN Implants chirurgicaux

  • Optional 316 LVM stainless steel filter - without welding points and 3T MRI compatible

    (see conditions in the user manual)


  • 4 approaches proposed.(verify the availability in your country with your distributor)
  • An optional vena cava filter approved for implantation in a vena cava with a maximum diameter of 32 mm. (Check the maximum allowed diameter according to the registration in your country with your distributor)
  • A reinforced stability thanks to its 3 anti-tilting legs minimizing the possible risk of tilt

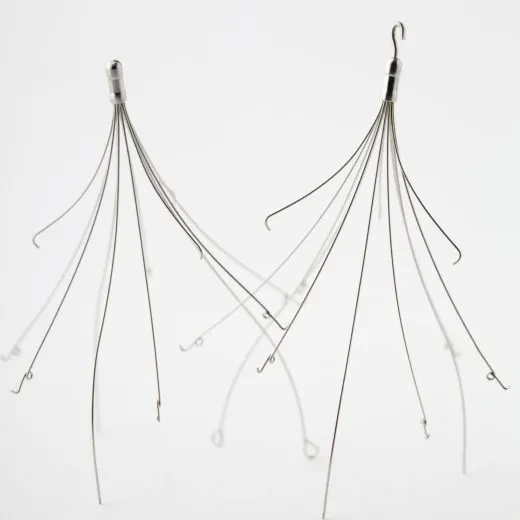

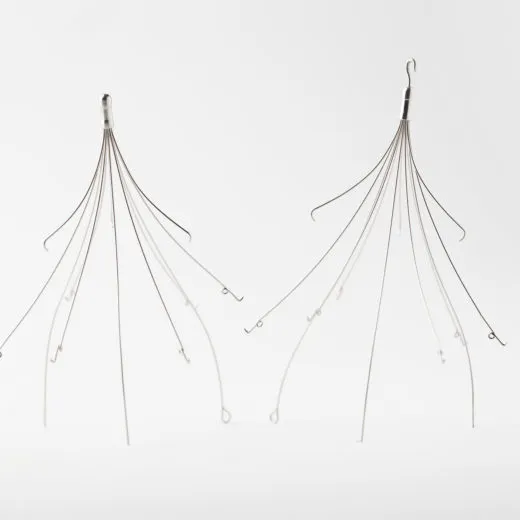

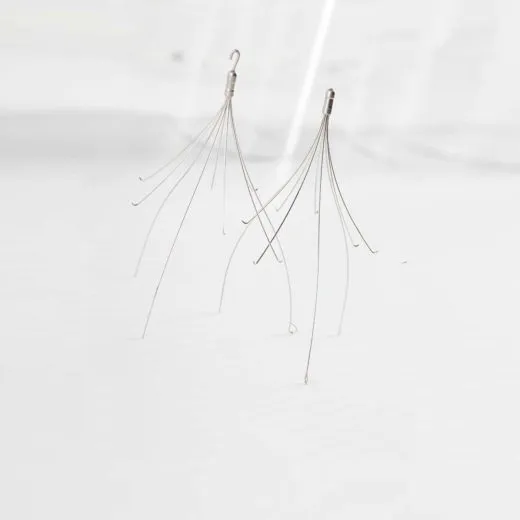

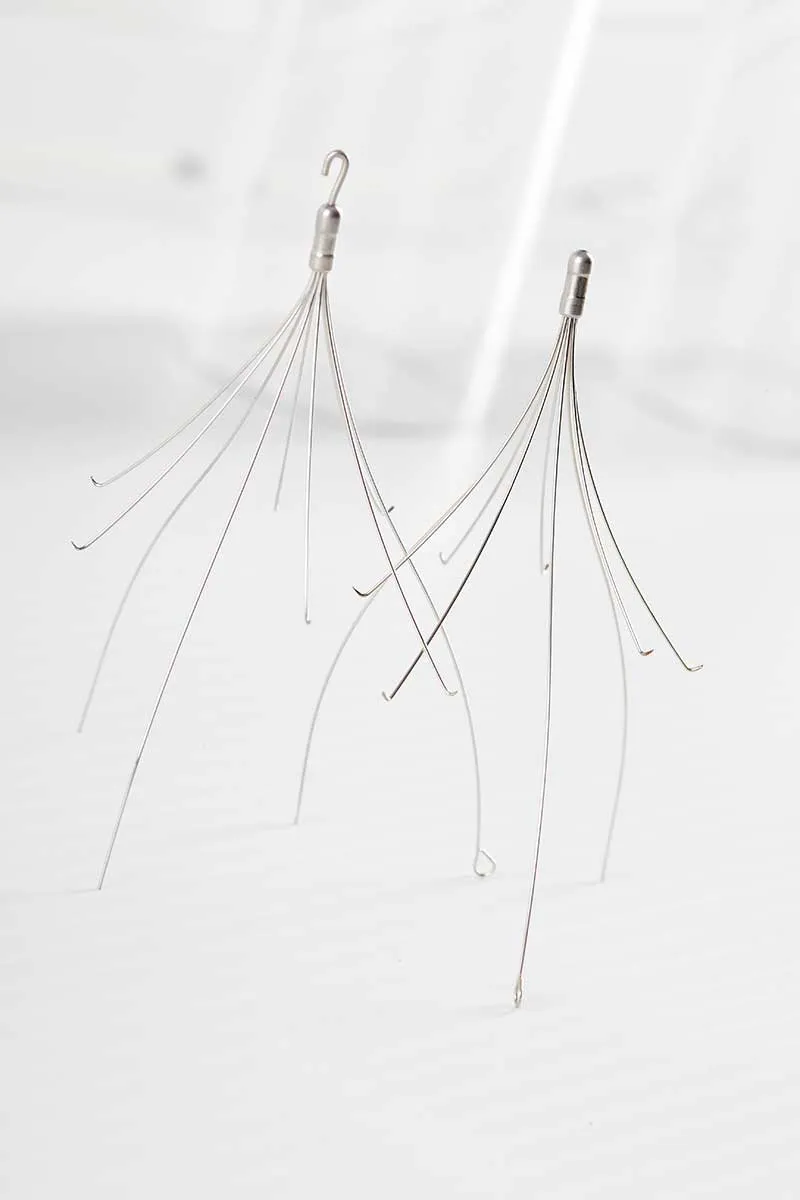

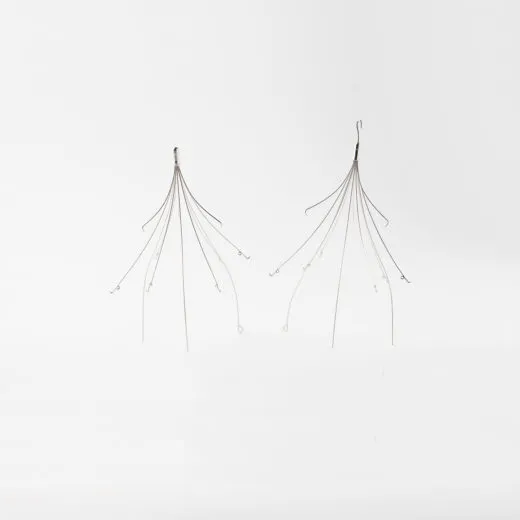

The optional ALN OATF vena cava filter with and without hook, an exclusive design

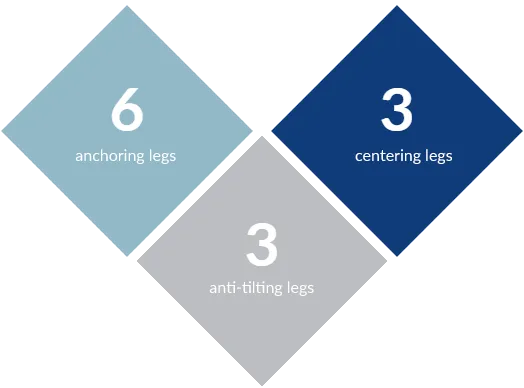

  • A design with a unique technology : 6 anchoring legs with a loop system to minimize the risk of transfixion, 3 centering legs and 3 anti-tilting legs for maximum centering to reduce the risk of tilt

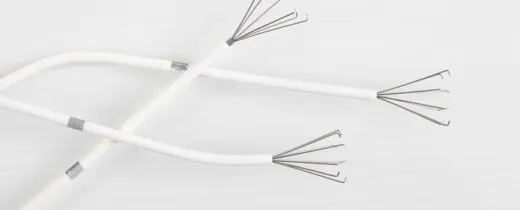

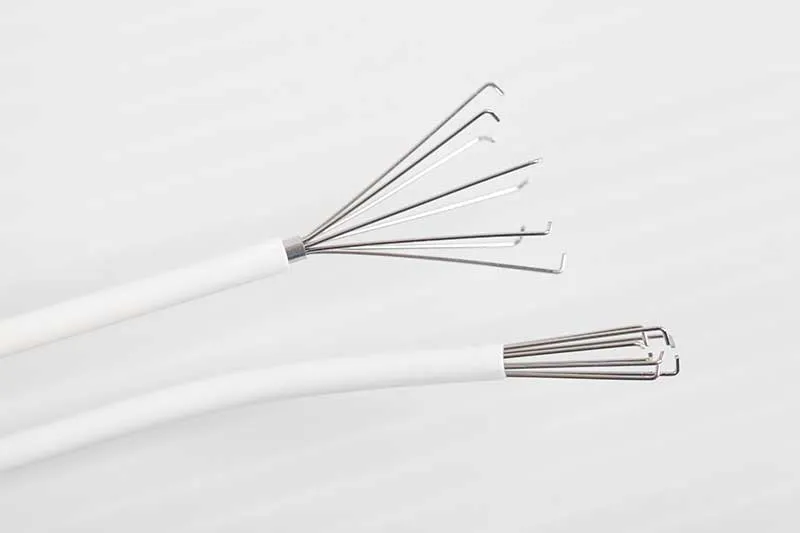

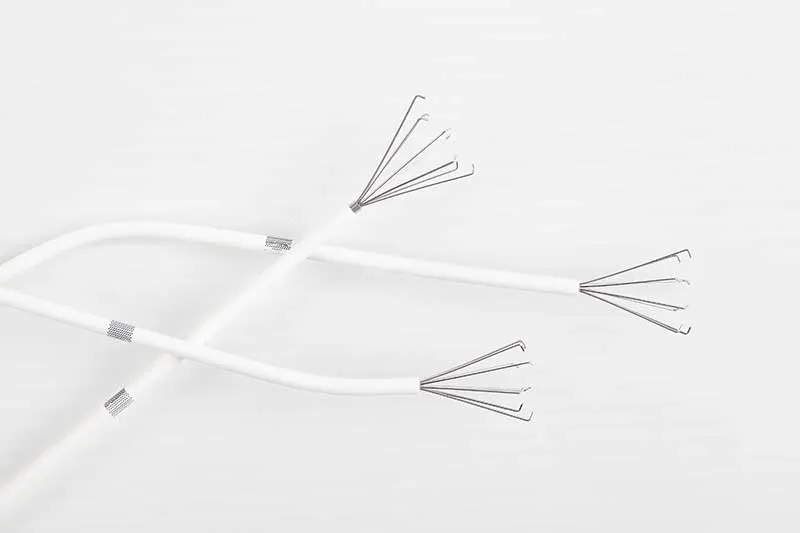

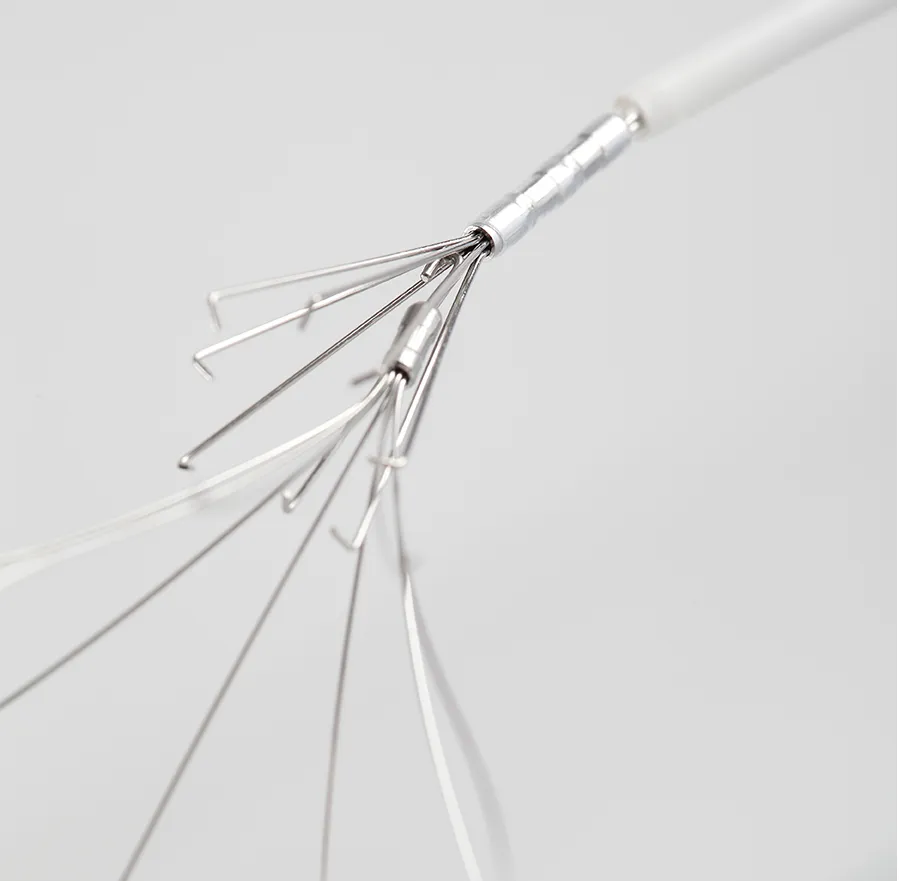

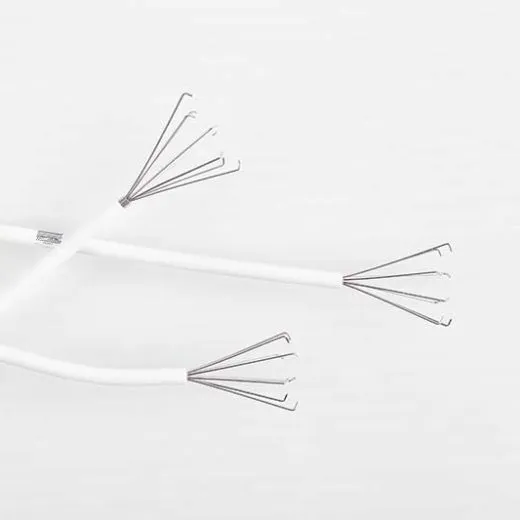

  • The possibility to remove the optional OATF vena cava filter with hook via one of the 3 ALN removal and/or repositioning kits or with a lasso

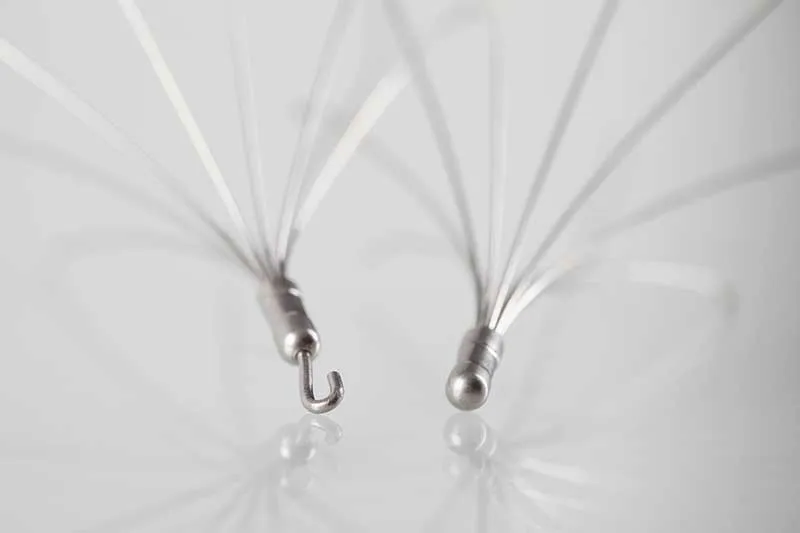

The ALN OATF filter with hook gives you access to another removal option

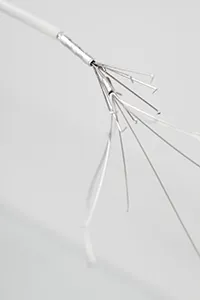

Because they are either permanent or temporary, you have the possibility to remove the optional OATF vena cava filter with a hook with one of our 3 ALN removal and/ or repositioning kits or with a lasso.

Our range of ALN vena cava filters grew as a result since 2013 from a model of filters with a hook,  without changing the original, unique and world-renowned design.



The optional ALN OATF vena cava filter with or without hook, 4 approaches for implantation.

  • Femoral
  • Popliteal (check availability in your country with your distributor)
  • Jugular
  • Brachial

     Conditional MR Compatibility (Tesla 3 High Magnetic Field MRI)

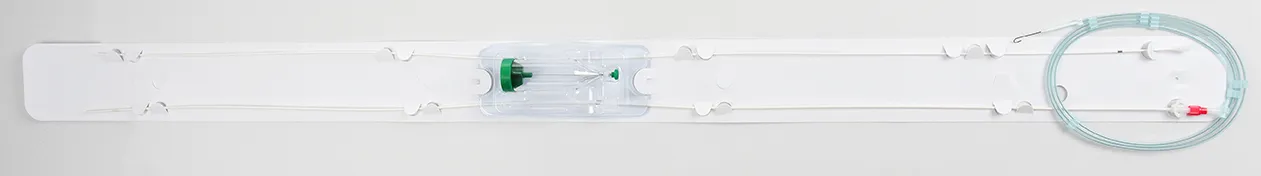

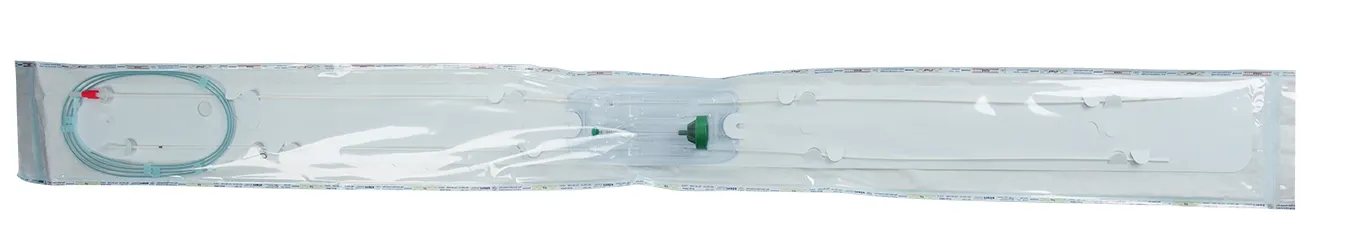

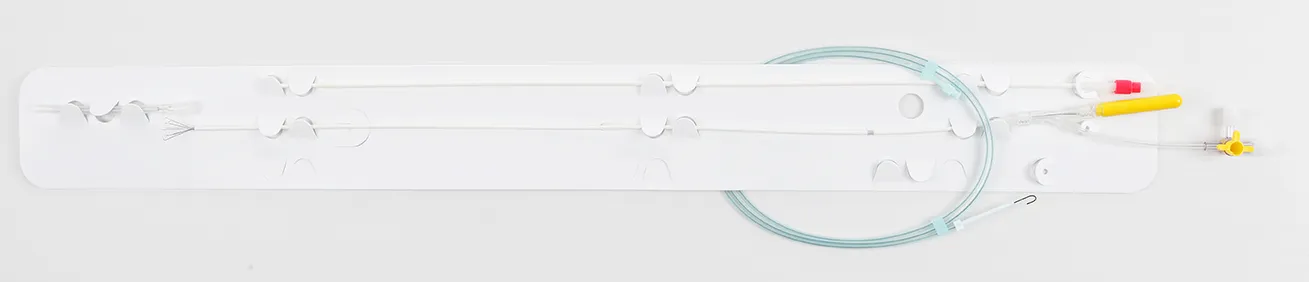

The ALN OATF optional vena cava filter with or without hook, composition of the implantation kit

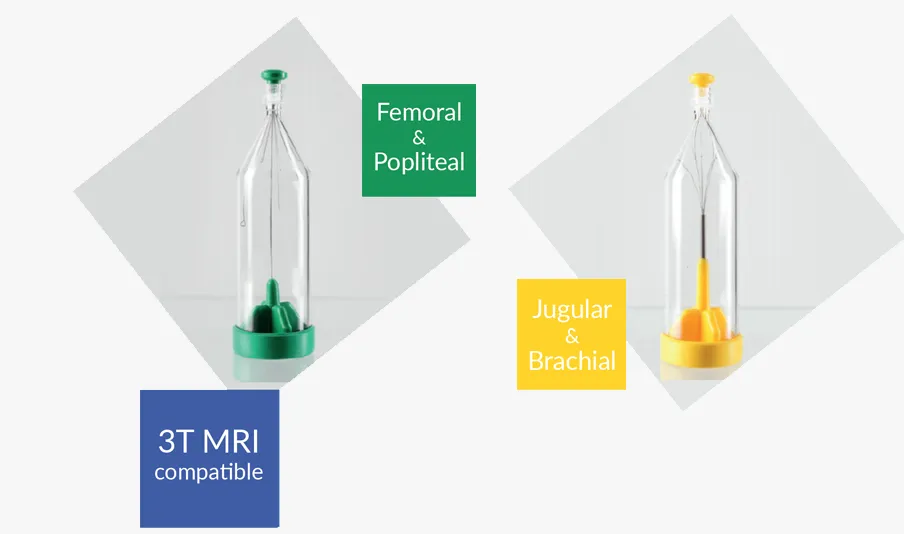

  • An ALN OATF optional vena cava filter (with or without hook), presented in its filter holder.
  • An introduction system (dilator, introducer sheath (7F) and pushing catheter)
  • A puncture needle.
  • A J- guide wire (0.035).

Product Codes

  Product Code* Maximum diameter of the vena cava filter (mm) Length of the filter (mm) Introducer Sheath
French size (ID) Lenght (mm)
ALN Vena Cava Filter Jugular Kit FJ.OATF19 32 55 7 600
Brachial Kit FB.OATF19 32 55 7 1200
Femoral Kit FF.OATF19 32 55 7 600
Popliteal Kit FP.OATF19 32 55 7 1200
ALN Vena Cava Filter with Hook Jugular Kit FJH.OATF19 32 59 7 600
Brachial Kit FBH.OATF19 32 59 7 1200
Femoral Kit FFH.OATF19 32 59 7 600
Popliteal Kit FPH.OATF19 32 59 7 1200
*check the maximum authorized diameter according to the registration in your country, as well as the availability of the products
